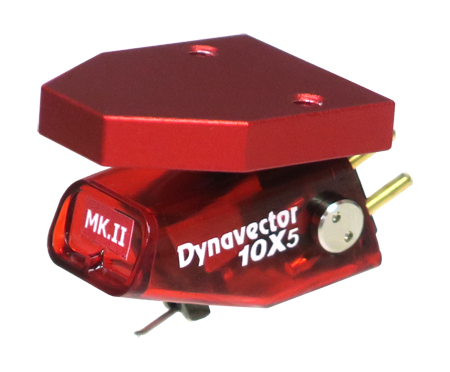

Dynavector 10X5 MKII

$999.00

SKU: 10X5 MKII Category:

DV 10X5 mkII High and Low

NEW MODEL   Now also in new Low Output Model – DV-10X5 mkII LOW!

Its a “game-changer” a high end low output MC at an entry level price!

  • magnetic flux damping
  • powerful neodymium magnet
  • aluminium head block
  • High Output MC 2.8mV,    NEW   Low Output MC 0.5mV

First released in 1978 and recipient of the prestigious (at the time) Design and Engineering Award at the Chicago CES in both 1978 and 1981. The new Dynavector 10X5 MKII MC cartridge presents a new benchmark in High Output MC cartridge performance not requiring a step-up device or MC phono preamplifier.

Improvements10X5mk2 MC Cartridge Stylus

Along with several exclusive Dynavector technologies that include Magnetic Flux Damping, Softened Magnetism (Patent) and powerful neodymium magnets that provide the smooth treble response Dynavector are renowned for.

The Dynavector 10X5 MKII also features an improved stylus assembly with the nude diamond “Shibata III” line contact stylus and improved hardened cantilever material. These improvements ensure secure tracking ability over even the most torturous of record grooves whilst achieving extended high frequency response and enhanced musical resolution.

The legendary Dynavector coil winding technology using the finest of wire has enabled the Dynavector 10X5 MKII to minutely increase the coil windings and achieve a reduction in impedance to 150 ohms whilst retaining a healthy 2.8mV output.

Mounting the cartridge to the tonearm is achieved by a rigid red aluminium head block that provides a stable platform for the cartridge along with easy and secure fixing to the tonearm.

10X5mk2 MC Cartridge dimensions



Trade in your old Dynavector cartridge on a brand new, latest model one and receive a substantial discount!
Use the drop down list box above to see trade in options.  Also see our FAQ’s on Dynavector Trade Ins.  FAQ link at bottom of this page or in “About” tab at top of page and you can contact us anytime for more help.



Model High Output Low Output
Type High output moving coil cartridge with flux damper and alnico magnet Low output moving coil cartridge with flux damper and alnico magnet
Output voltage 2.8mV (at 1kHz 5cm/sec) 0.5mV (at 1kHz 5cm/sec)
Tracking force 1.8 – 2.2g 1.8 – 2.2g
Impedance 150 ohms 32 ohms
Recommended load
impedance
>1,000 ohms >100 ohms
Channel separation 25dB (at 1kHz)  25dB (at 1kHz)
Channel balance 1.0 dB (at 1KHz) 1.0 dB (at 1KHz)
Frequency response 20 – 20,000 Hz(±1dB) 20 – 20,000 Hz(±1dB)
Compliance 20 – 12 mm/N 20 – 12 mm/N)
Cantilever 6mm length hardened aluminium pipe 6mm length hardened aluminium pipe
Stylus Nude Diamond “Shibata III” Line Contact Nude Diamond “Shibata III” Line Contact
P75 PE Mode setting n/a High R
Weight 0.5 kg
