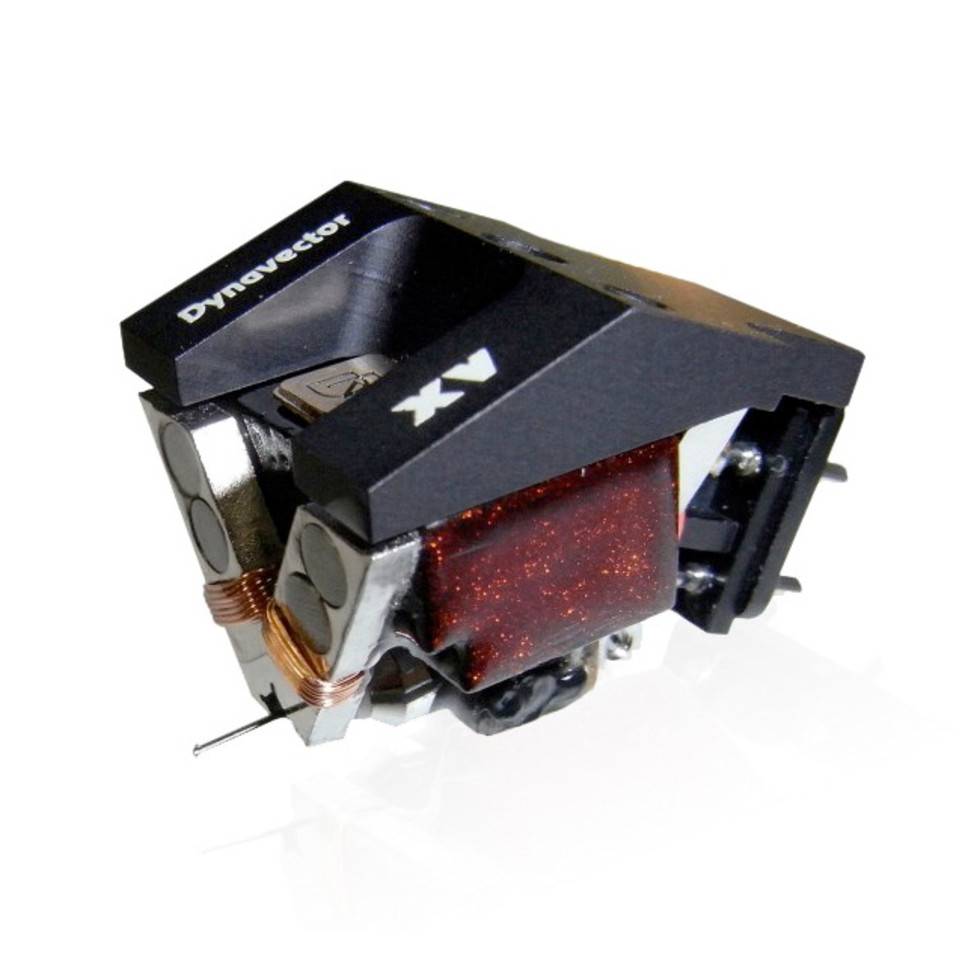

Dynavector DrT XV-1t


SKU: DV DRT XV1T Category:


  • 8 Alnico magnets
  • magnetic stabilising coils
  • square shaped front aperture

In 1999 Dynavector released the revolutionary DRT XV-1 stereo cartridge that pioneered the unique topology that included 8 Alnico magnets, magnetically stable front yokes, square shaped front armature within the rather spectacular deep “V” shaped front elevation. Combined with Dynavector’s patented “Flux Damping” this cartridge quickly became the worldwide benchmark for music lovers and the audio press alike.

The subsequent flagship design for Dynavector the XV-1s released in 2002 refined and improved the technology. Retaining the patented Flux Dumping but included the magnetically stable front yoke with the unique square shaped aperture and improved magnetic equalising component, all encompassed in an African Ebony body to provide further stability for the magnetic components.

First inspection of the DV XV-1t reveals that although it is unmistakably Dynavector, the beautiful body is Urushi lacquered over a precision machined component of heat treated bamboo that has been assiduously selected for both design, elegance and acoustic performance.

Dynavector’s patented Flux Damping process has been retained in concert with new ground breaking innovations that will quickly establish the XV-1t as not only the Dynavector flagship but set the contemporary standards in analog music reproduction.

Technology abounds within the XV-1t but the Dynavector “raison d’etre” is making the technology invisible and allowing the music to emerge like never before.

A silky smoothness is added to the musical reality which the XV cartridges have previously exhibited and as a result each instrument, performer or group is clearly imaged with a warm and rich presence. Dynavector believe that this emotive musical experience cannot be achieved by a digital source and with the XV-1t they have created a “Super Analog World”.

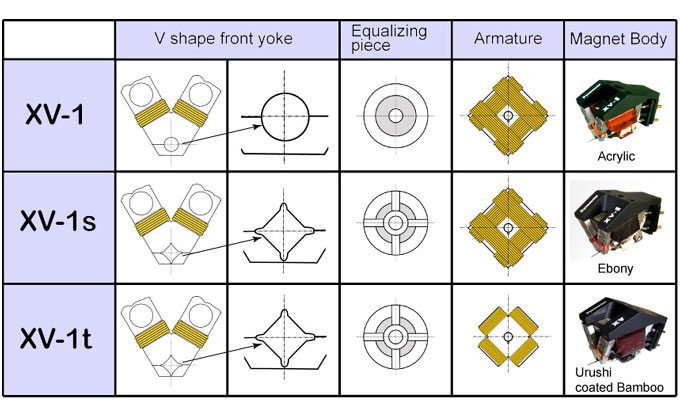

Development history of the DRT XV-1

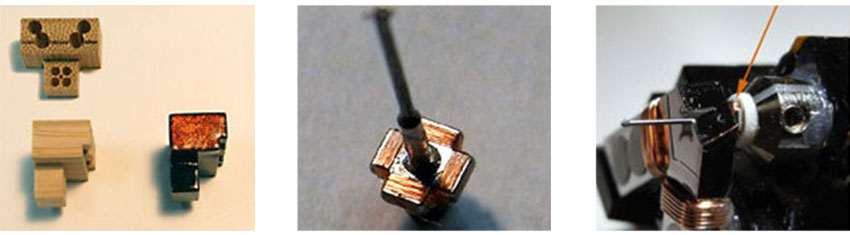

 Principal improvements

  • The unique square armature manufactured from a carefully chosen selected material that is both corrosion resistant and impervious to age deterioration.
  • 16 micro coil windings that only Dynavector can manufacture are wound around a square shaped armature to match the square shaped aperture in the front yoke
  • Alnico column magnets to stabilise the magnetic circuits and increase the linearity of the magnetic field distribution within the air gap
  • Exclusive walnut case

Rebuild your old DRT XV-1t or trade it in on a brand new, latest model and receive a substantial discount.
Your old Dynavector cartridge can be used as a trade in regardless of its condition.   Use the drop down list box above to see trade in options.  Also see our FAQ’s on Dynavector Trade Ins.  FAQ link at bottom of this page or in “About” tab at top of page and you can contact us anytime for more help.


Type low output moving coil cartridge with
multiple alnico magnets and flux damper
Impedance 24 ohms
Output voltage 0.35 mV (at 1kHz, 5 cm/sec)  Recommended load impedance >75 ohms
Channel separation 30dB (at 1kHz) Cantilever  6mm solid boron with special armature
Frequency response 20 – 20kHz (±1dB) Stylus  PF line contact shape,
Stylus radius 7 x 30 micron
Compliance 10 mm/N Weight 12.0 g
Tracking force 1.8 – 2.2 g P75 PE Mode setting High R


Weight 0.5 kg
